Experience TRU system

TruCoat is not just a normal coating, it has its own system with the best quality.



Typical Lining Construction

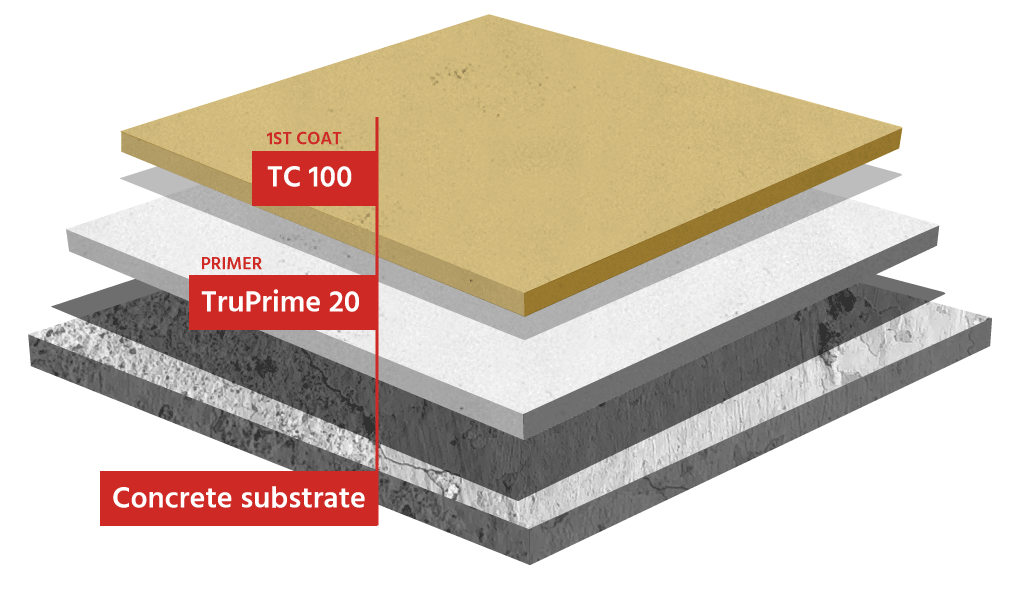

Trucoat TC 100 System on Concrete

Application Sequence

Surface Preparation: Blasting profile to sand paper Grade 2-4. All concrete surface need to be free of loose laitance, loose concrete, grease and oil. Repair blowholes, tieholes, burrholes and any form of formwork residues. For fresh concrete, please allow 28 days for the concrete to be fully cured to regain the strength.

Layer Primer First coat
Materials Truprime 20 Trucoat 100
Color Cream Buff
Based resin Polyure Aromatic Polyurea
Application method Airless, Brush Plural pump
Thickness (mics) 50 -75 1500

Typical Lining Construction

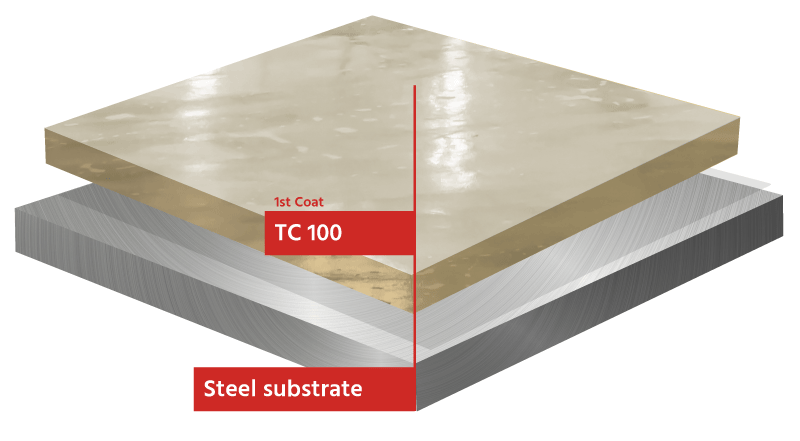

Trucoat TC 100 System on Steel

Application Sequence

Surface Preparation: Abrasive blast to SSPC- SP10 ( Sa2.5- ISO 8501-1:2007) surface cleanliness with angular surface profile height of 60-75 microns

Layer First coat
Materials Trucoat 100
Color Buff
Based resin Aromatic Polyurea
Application method Plural pump
Thickness (mics) 1500

Typical Lining Construction

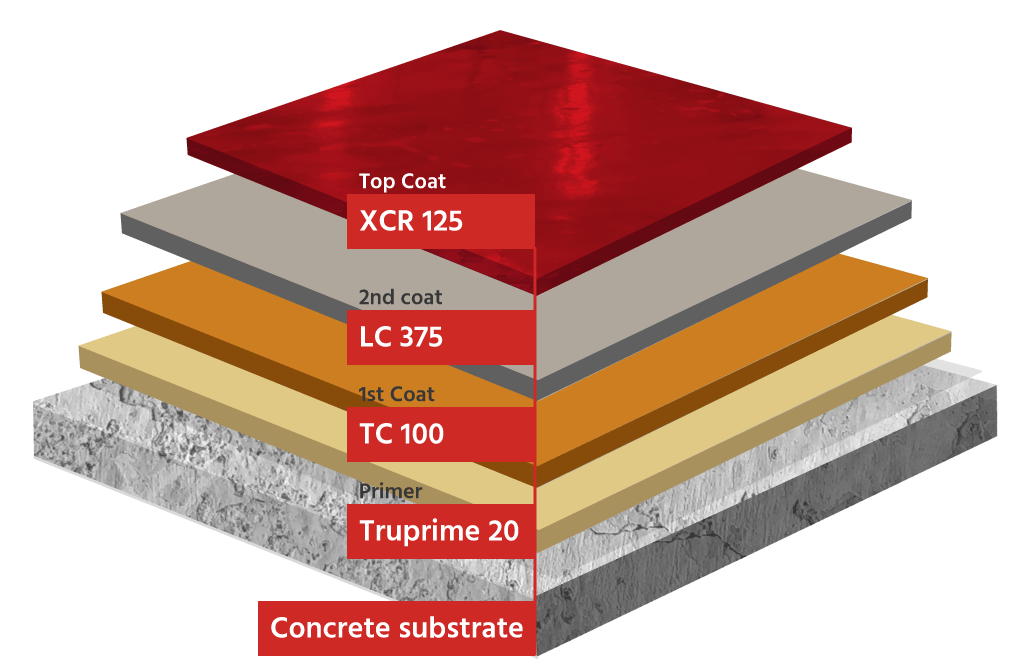

Trucoat XCR System on Concrete

Application Sequence

Surface Preparation : Blasting profile to sand paper Grade 2-4. All concrete surface need to be free of loose laitance, loose concrete, grease and oil. Repair blowholes, tieholes, burrholes and any form of formwork residues. For fresh concrete, please allow 28 days for the concrete to be fully cured to regain the strength.

Layer Primer First coat Second coat Top coat
Materials Truprime 20 Trucoat 100 LC 375 XCR 125
Color Cream Tan Grey Red
Based resin Polyure Aromatic Polyurea Fluoroelastomer Viton PTFE
Application method Airless, Brush Plural pump Airless Spray Airless Spray
Thickness (mics) 50 -75 1500 350 125

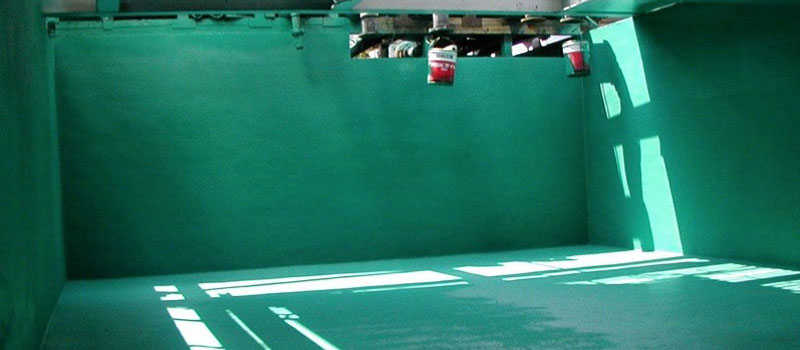

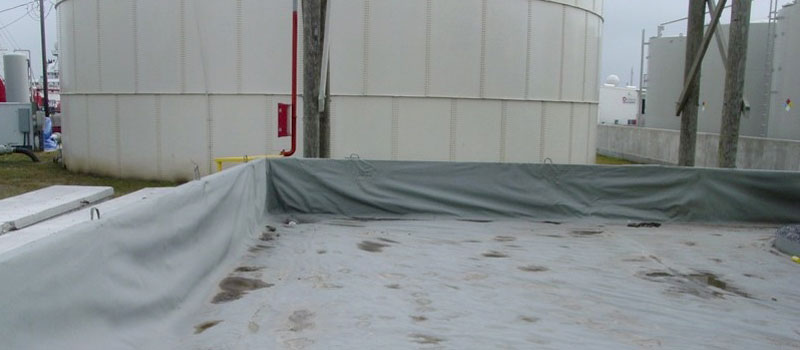

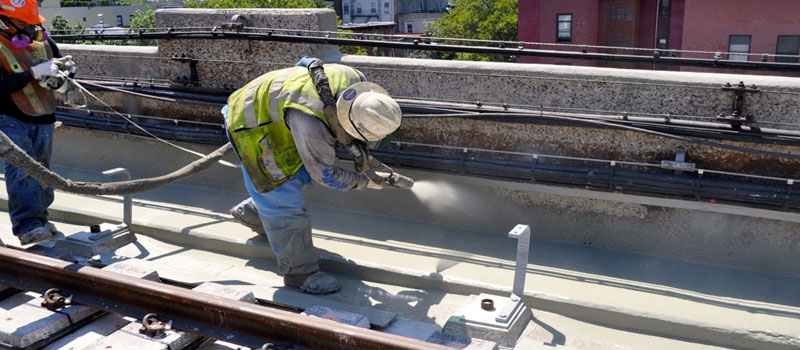

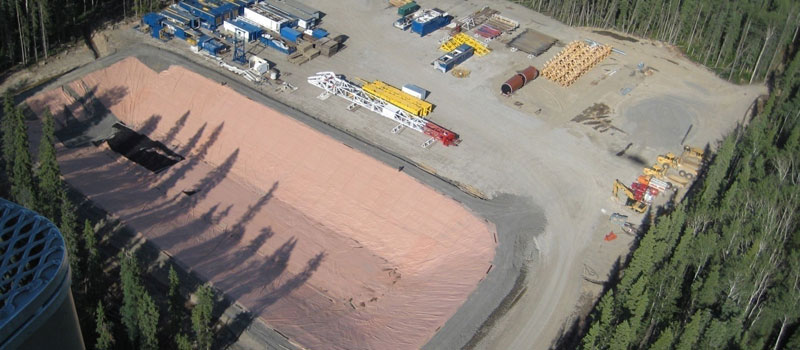

Polyurea application

Ployurea application in various places based on different type of materials and surroundings.
